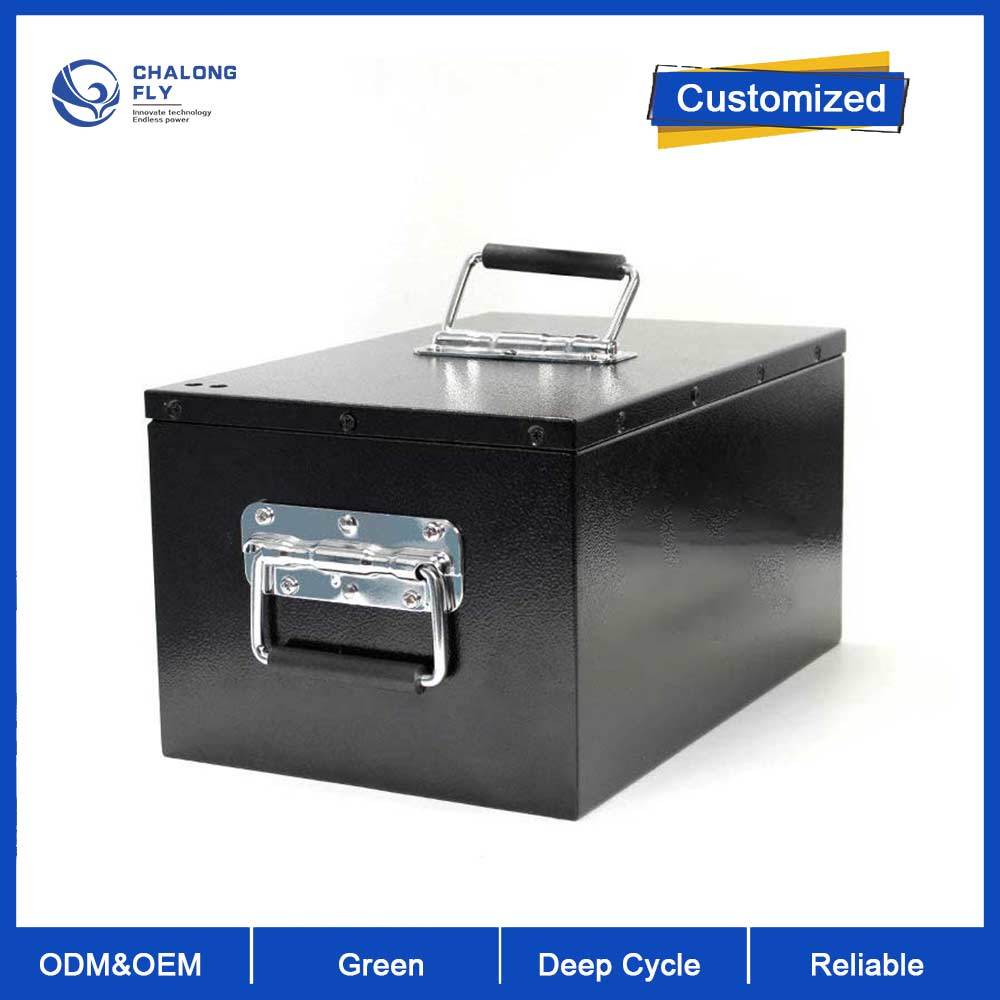

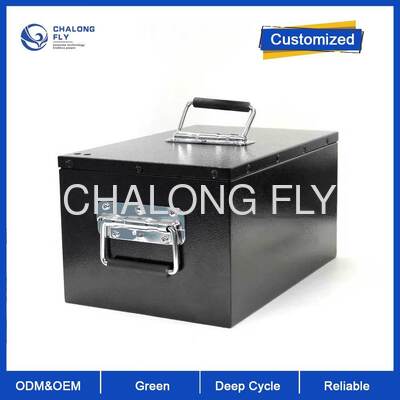

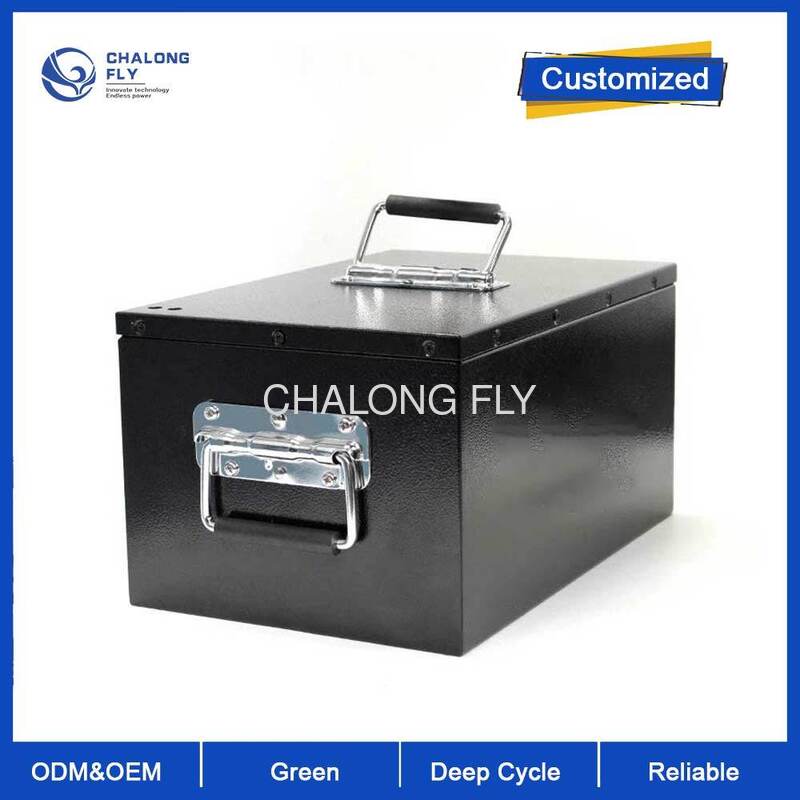

72V 170Ah LiFePO4 Electric Motorcycle Battery with IP67 Waterproof and 4000 Cycles for Heavy-Duty Performance
72V 170Ah LiFePO4 Electric Motorcycle Battery with IP67 Waterproof and 4000 Cycles for Heavy-Duty Performance
Επικοινωνήστε

72V 170Ah LiFePO4 Electric Motorcycle Battery with IP67 Waterproof and 4000 Cycles for Heavy-Duty Performance

Ποσότητα παραγγελίας min : 2 Μονάδα Τιμή : διαπραγματεύσιμα
Συσκευασία λεπτομέρειες : Ξύλινη περίπτωση και θάρρος χαρτοκιβωτίων Χρόνος παράδοσης : 7-15 εργάσιμες ημέρες
Όροι πληρωμής : T/T Δυνατότητα προσφοράς : 10000 μονάδες το μήνα
Τόπος καταγωγής: Χουνάν, Κίνα Μάρκα: Chalong Fly
Πιστοποίηση: CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc Αριθμό μοντέλου: CLFLE218

Λεπτομερής ενημέρωση
Τύπος μπαταρίας:: μπαταρία lifepo4 Δυναμικό:: 48V
Ικανότητα:: 200 Ah Μέγεθος:: προσαρμοσμένη
OEM/ODM:: Ναί Πακέτο μεταφοράς:: Περίπτωση αφρού & κοντραπλακέ
Αδιάβροχο πρότυπο:: IP67 Κωδικός HS:: 8507600090
Χαρακτηριστικά:: Αποδοτική από πλευράς κόστους, ταχεία παράδοση, σταθερή δομή Εφαρμογή:: ηλεκτρικό όχημα, ηλεκτρική βάρκα, ηλεκτρικό γιοτ, ναυτικό
Επισημαίνω:

72V 170Ah Electric Motorcycle Battery

,

IP67 Waterproof LiFePO4 Battery Pack

,

4000 Cycles OEM Battery Pack

Περιγραφή προϊόντων


72V 170Ah Electric Motorcycle Battery – Maximum Range & Heavy-Duty Performance
72V 170Ah LiFePO4 Electric Motorcycle Battery with IP67 Waterproof and 4000 Cycles for Heavy-Duty Performance 0 The ultimate power solution for electric motorcycles, trikes, and heavy-duty two-wheelers. With a massive 12.24 kWh energy capacity, this battery is engineered for riders who demand maximum range, consistent power delivery, and uncompromising reliability. Whether you're tackling long-distance touring, daily cargo delivery, or off-road adventures, this battery keeps you moving.
Technical Specifications
Specification Details
Nominal Voltage 72V
Nominal Capacity 170Ah
Total Energy 12.24 kWh
Cell Chemistry Lithium Iron Phosphate (LiFePO₄)
Cell Configuration 24S1P (24 cells in series)
Cell Origin Automotive Grade A, sourced from Tier-1 suppliers (e.g., BYD, Gotion)
Cycle Life ≥ 4000 cycles @ 80% DoD, 1C rate
Max Continuous Discharge 200A
Peak Discharge (10 sec) 400A
Recommended Charge Current 30A (0.18C)
Max Charge Current 85A (0.5C)
Charge Cut-off Voltage 86.4V ± 0.5V
Discharge Cut-off Voltage 60V ± 0.5V (under load)
BMS Type Smart 250A BMS with CAN bus & Bluetooth
BMS Protection Over-voltage, under-voltage, over-current, short circuit, temperature
Cell Balancing Active balancing (optional)
Communication Protocol CAN 2.0, RS485, UART
Dimensions (L × W × H) 580 × 290 × 255 mm
Weight Approx. 85 kg
Enclosure Material Steel plate with electrostatic painting
Ingress Protection IP65 (dust-tight, water-resistant)
Terminal Type Dual Anderson SB175 connectors
Charge Temperature Range 0°C to 50°C
Discharge Temperature Range -20°C to 60°C
Storage Temperature -10°C to 35°C (recommended)
Certifications UN38.3, CE, FCC, RoHS

Application Scenarios & Compatibility

 Compatible Vehicle Types

  • Heavy electric motorcycles (e.g., Zero SR/F, LiveWire One – with custom battery tray)

  • Electric trikes and cargo bikes (for delivery fleets)

  • Custom-built high-performance scooters (with aftermarket controllers)

  • Electric off-road bikes and enduros72V 170Ah LiFePO4 Electric Motorcycle Battery with IP67 Waterproof and 4000 Cycles for Heavy-Duty Performance 1

72V 170Ah LiFePO4 Electric Motorcycle Battery with IP67 Waterproof and 4000 Cycles for Heavy-Duty Performance 2
Frequently Asked Questions
What is the actual range of this 72V 170Ah lithium battery?
The actual range is 120-150km, depending on motor power (1500-2000W), vehicle load, road conditions and driving habits; flat road with light load can reach the upper limit of range.
How long does it take to fully charge the 72V 170Ah battery?
Standard 8A charger: 6-8 hours full charge; 1.5C fast charger: 3-4 hours full charge, fast charge mode does not damage the battery.
Can this battery directly replace 72V lead-acid battery?
Yes, it is a direct upgrade replacement for 72V lead-acid batteries, same voltage interface, plug-and-play, no circuit modification required.
What is the warranty policy of this battery?
We provide 3-year or 1500-cycle warranty (whichever comes first), covering quality defects (non-human damage).
Is this 72V 170Ah battery waterproof for rainy days?
It has IP67 waterproof grade, can be used normally in rainy days, resist daily splashing and light immersion, but do not soak in water for a long time.
What is the difference between LiFePO4 and lead-acid batteries?
  • LiFePO4 battery has lighter weight (45% lighter)
  • Longer cycle life (5-8 times)
  • Faster charging
  • Higher safety
  • Zero maintenance
  • Better overall performance than lead-acid batteries
Can this battery be used in cold winter?
Yes, it supports normal discharge at -20℃, with small capacity attenuation, suitable for cold regions; it is recommended to charge in room temperature environment in extreme cold.
