CLF OEM LiFePO4 EV Lithium Battery Pack 96V 120V 360V 100ah 200Ah Συσκευή μπαταρίας υψηλής τάσης για φορτηγά οχημάτων χαμηλής ταχύτητας
Υπεύθυνος : Rosa Liu
Τηλεφωνικό νούμερο : +86 18975107916
ΤιAPP : +8618975107916
| Ποσότητα παραγγελίας min : | 80 μονάδες | Τιμή : | διαπραγματεύσιμα |
|---|---|---|---|
| Συσκευασία λεπτομέρειες : | Ξύλινη περίπτωση και θάρρος χαρτοκιβωτίων | Χρόνος παράδοσης : | 7-15 εργάσιμες ημέρες |
| Όροι πληρωμής : | T/T | Δυνατότητα προσφοράς : | 10000 μονάδες το μήνα |
| Τόπος καταγωγής: | Χουνάν, Κίνα | Μάρκα: | CLF |
|---|---|---|---|
| Πιστοποίηση: | MSDS, UN38.3 | Αριθμό μοντέλου: | Clf-R0519 |
|
Λεπτομερής ενημέρωση |
|||
| Δυναμικό: | 72V | Ικανότητα: | 20/25/30/35Ah |
|---|---|---|---|
| Κυψέλη μπαταρίας: | LiFePO4/NCM | Κύκλος Ζωής: | 3000 φορές |
| Μέγεθος: | Προσαρμοσμένο | βάρος: | Προσαρμοσμένο |
| Εφαρμογή: | Ηλεκτρικό μηχανικό δίκυκλο, μοτοσικλέτα, Ebike, ηλεκτρικό τρίκυκλο κ.λπ. | Διάρκεια ζωής: | 5 χρόνια |
| Πιστοποιητικό: | CE, RoHS, FC | ||
Περιγραφή προϊόντων

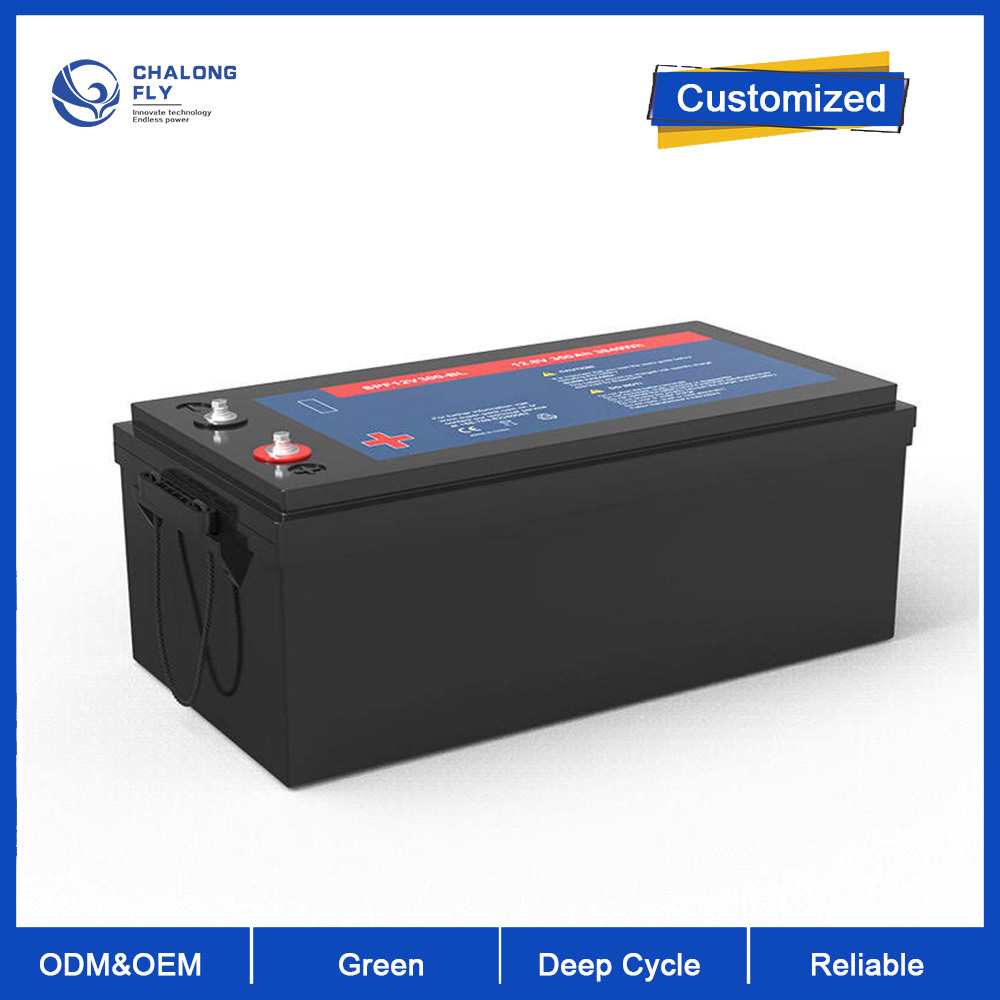

This 12V 314Ah lithium battery is specially designed for electric two-wheelers, electric scooters and commuting e-bikes. It adopts high-quality lithium cells with intelligent BMS protection board, featuring large capacity, long range, high safety and long service life. It is suitable for all kinds of 12V power supply two-wheeled vehicles, solving the range anxiety of short-distance commuting and long-distance travel. With stable charging and discharging performance and safe use, it is an ideal accessory for upgrading the range of two-wheeled vehicles.
Core Specifications
| ITEM | SPECIFICATION |
|---|---|
| Model | 12V 314Ah LiFePO4 Lithium Battery |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 314Ah |
| Rated Energy | 4019.2Wh |
| Charge Voltage | 14.6V |
| Discharge Cut-off Voltage | 10.0V |
| Cycle Life | ≥2000 Cycles @80% DOD |
| Charge Temperature Range | 0~45℃ |
| Discharge Temperature Range | -20~60℃ |
| Protection Function | Overcharge, Over-discharge, Over-current, Short-circuit, Over-temperature, Reverse Connection Protection |
| Application | Electric Two-Wheeler, E-Bike, Electric Scooter, Modified Electric Vehicle |
Core Advantages
Ultra-large Capacity & Long Endurance
Standard 314Ah large-capacity cells with high energy density, completely getting rid of frequent charging, greatly improving the single charge driving range of two-wheeled vehicles. It meets the range needs of daily commuting, long-distance travel, takeaway delivery and other travel scenarios, with no range worries.
Stable Performance & Wide Compatibility
Stable voltage output, strong continuous power supply capacity, no voltage drop under full load operation. It is suitable for all kinds of 12V voltage system electric two-wheelers, modified electric vehicles, electric scooters and leisure scooters. It is easy to install, with strong compatibility and convenient replacement and upgrade.
Long Cycle Life, Durable & Cost-effective
Adopting high-quality LiFePO4 cells, the cycle charge and discharge times can reach more than 2000 times. The battery has slow attenuation and low self-discharge rate. It has a longer service life than ordinary batteries, with higher cost performance for long-term use, and no need to replace the battery frequently.
![]()
![]()
Application Scenarios
Suitable for all kinds of 12V powered two-wheeled vehicles such as electric two-wheelers, electric scooters, commuting e-bikes, takeaway delivery vehicles, modified scooters and leisure electric two-wheelers.
![]()
![]()
FAQ
1.Is this battery suitable for my two-wheeler?
This battery is 12V standard voltage, suitable for most 12V power supply electric two-wheelers, electric scooters and other models. Just confirm that the vehicle power supply voltage is 12V before purchase, with extremely strong compatibility.
2.What is the specific cycle life of the battery?
Under the standard of 80% depth of discharge, the battery can be charged and discharged more than 2000 cycles. With normal and standard use, the service life of the battery can reach 3-5 years, and the specific duration depends on the use frequency and maintenance.
3.Does the battery have built-in protection function?
Built-in full set of intelligent BMS protection board, with six core protections: overcharge, over-discharge, over-current, short circuit, high temperature and reverse connection. No additional protection device is needed, safe and easy to use.
4.Can the battery size and connector be customized?
We support customized battery size, wiring connector, wire length, etc. according to needs, to meet the installation and use needs of different models. For bulk orders, please contact customer service to discuss the customized plan.
5.What is the operating temperature range of the battery?
The charging temperature range is 0-45℃, and the discharging temperature range is -20-60℃. It is suitable for the four seasons environment in most areas of China, and can discharge stably in low and high temperature environments to ensure normal riding.
