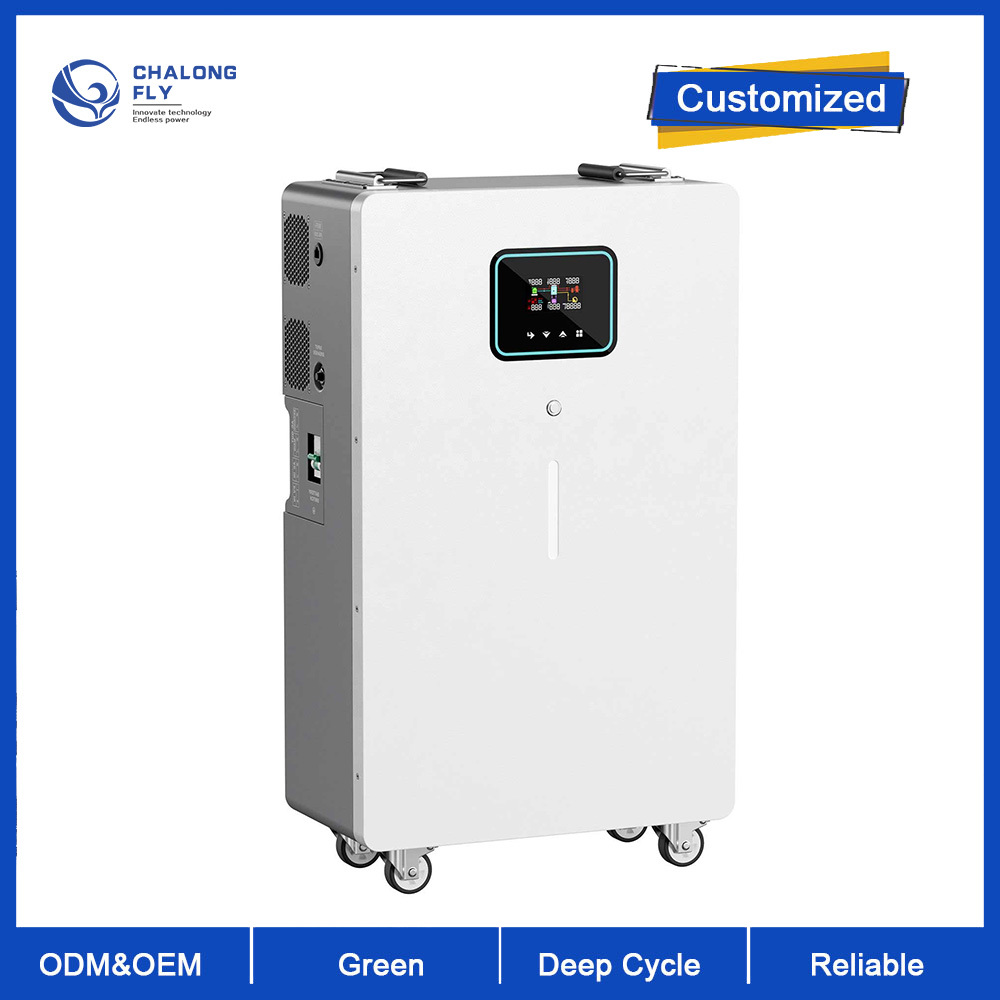

Storage System 10kw Lithium Battery 51.2V 48V 200ah Solar Lifepo4 Battery Pack for Household Energy Power Wall

Ποσότητα παραγγελίας min : 2 Μονάδα Τιμή : διαπραγματεύσιμα
Συσκευασία λεπτομέρειες : Ξύλινη περίπτωση και θάρρος χαρτοκιβωτίων Χρόνος παράδοσης : 20 εργάσιμες μέρες
Όροι πληρωμής : T/T Δυνατότητα προσφοράς : 1000 μονάδες το μήνα
Τόπος καταγωγής: Χουνάν, Κίνα Μάρκα: Chalong Fly
Πιστοποίηση: CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc Αριθμό μοντέλου: CLFLE143

Λεπτομερής ενημέρωση

Ονομαστική τάση: 48V Ονομαστική χωρητικότητα: 100Ah/150Ah/200Ah
Αδιάβροχος: IP65 Προσαρμόσιμο: Ναί
Τύπος ελεγκτή: MPPT Συχνότητα εξόδου: 60Hz/50Hz
Φορτίο ισχύος (w): 3KW, 5kW, 10KW BMS: Ενσωματωμένη προστασία BMS
Τύπος ηλιακού πίνακα: Μονοκρυσταλλικό πυρίτιο Πιστοποιητικό: CE, ROHS, FCC, IEC62133, MSDS, UN38.3, UL, Κ.ΛΠ.
Εφαρμογή: Σπίτι, βίλα, εγχώρια κτήρια, σπίτι, κατοικημένη αποθήκευση ηλιακής ενέργειας

Περιγραφή προϊόντων

Designed specifically for home energy independence, this 10KW solar LiFePO4 battery pack (51.2V/48V 200Ah) is an ideal choice for household energy Power Wall. It perfectly matches the home photovoltaic system, realizing a closed-loop energy management of "photovoltaic power generation - energy storage - intelligent power supply". With 10KW high-power output, 200Ah large-capacity energy storage, and LiFePO4 safe battery cells, it can easily meet the multiple needs of large-family daily electricity use, peak-valley electricity price arbitrage, and emergency power supply during sudden power outages, balancing energy saving, environmental protection and convenience, allowing families to completely get rid of grid dependence and enjoy stable, clean green energy.

Core Advantages

10KW rated power design, far exceeding ordinary home energy storage systems, can drive multiple high-power household appliances (such as central air conditioners, electric water heaters, induction cookers, etc.) at the same time, easily covering the entire electricity needs of large families with 150-300 square meters, without worrying about the inability of household appliances to operate normally due to insufficient power, realizing self-sufficiency in the whole family's electricity use.

Storage System 10kw Lithium Battery 51.2V 48V 200ah Solar Lifepo4 Battery Pack for Household Energy Power Wall 0
Product Parameters
Parameter NameSpecification
Product ModelHousehold Solar LiFePO4 Energy Storage Power Wall
System Power10KW
Battery TypeLiFePO4 (Lithium Iron Phosphate)
Nominal Voltage51.2V / 48V (Dual Voltage Adaptation)
Battery Capacity200Ah
Charge-Discharge Cycles≥6000 Cycles (80% DOD, 25℃±2℃)
Service LifeUp to 10 Years
Max PV Input Voltage500Vdc
MPPT Charge ControllerBuilt-in 150A MPPT, Voltage Range: 120-450Vdc
AC Output Voltage230V AC (Single Phase) / 400V AC (Three Phase, Optional)
AC Output Frequency50/60Hz (Auto Adaptation)
Charge-Discharge Efficiency≥95%
Operating Temperature-20℃ ~ +50℃
Storage Temperature-30℃ ~ +70℃
Protection LevelIP65 (Waterproof and Dustproof)
Installation TypeWall-mounted / Floor-mounted
Remote MonitoringSupport WiFi / GPRS / RS485
Max Parallel Quantity8 Sets
Warranty3 Years (Battery), 5 Years (Inverter)
Storage System 10kw Lithium Battery 51.2V 48V 200ah Solar Lifepo4 Battery Pack for Household Energy Power Wall 1
Core Advantages
10KW High Power, Meet Large Family Electricity Needs

10KW rated power design, far exceeding ordinary home energy storage systems, can drive multiple high-power household appliances (such as central air conditioners, electric water heaters, induction cookers, etc.) at the same time, easily covering the entire electricity needs of large families with 150-300 square meters, without worrying about the inability of household appliances to operate normally due to insufficient power, realizing self-sufficiency in the whole family's electricity use.

51.2V/48V 200Ah Large Capacity, Stable Energy Storage

Supports 51.2V/48V dual-voltage adaptation, compatible with most home photovoltaic inverters, with stronger adaptability; 200Ah large-capacity battery cells, high energy storage density, a single full charge can meet the basic electricity needs of ordinary families for more than 24 hours, and can ensure the continuous operation of key household appliances in emergency situations, completely solving the anxiety of power outages.

Storage System 10kw Lithium Battery 51.2V 48V 200ah Solar Lifepo4 Battery Pack for Household Energy Power Wall 2
FAQ:

Q1. Are you a factory?

A: Yes, we are a professional lithium battery manufacturer in China, and factory tour is acceptable.

Q2. Do you accept OEM/ODM?

A: Yes, OEM, ODM, LOGO, and STICKER is acceptable, our professional team is on hand to offer you any solutions.

Q3. Can I have a sample order first?

A: Yes, sample order is acceptable.

Q4. How will my order be shipped?

A: Chalong Fly offers a variety of shipping methods, such as DHL, UPS, FedEx, TNT, Airline and sea shipping.

Q5: What kind of certificates do you have?

A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc.

Q6. Can we sign a NDA in order for a long-term cooperation?

A: Yes, the client’s requirements is respected.

O7: Is there any warranty or After-Sale Service?

A: We will check each battery before shipment, and 100% high quality guaranteed. The warranty is about 1~20 years depends on different models.

Q8. Why do you choose Chalong Fly?

A: Chalong Fly R&D center has more than 60 R&D engineers, 12 of whom have more than 10 years of experience related to power development. We have a deep understanding of power electronics technology, and a full understanding of the needs of the application industry, and have developed many public technology solutions.
